Pneumatski alati za pakovanje čeličnom trakom, su ručni uređaji pokretani komprimovanim vazduhom koji omogućavaju zatezanje, zavarivanje (trenjem) i sečenje čelične trake u jednom brzom potezu.
Idealni su za industrijsku primjenu gdje je potrebna pouzdanost i brzina bez napora.
ITA 40
Pneumatski kombinovani alat za čeličnu traku sa jednostrukim utiskivanjem (single notch), namenjen za trake širine 13 mm, 16 mm i 19 mm.
Dostupan je u tri verzije motora – 2000 N, 5500 N i 7500 N, kako bi se obezbedilo optimalno i prilagodljivo zatezanje u zavisnosti od Vaše primene.
Lightweight and easy to use, the ITA 40 is both powerful, fast, and efficient.
Technical Specifications
| Tool name | ITA 40 |
| Packaging method | Metal staples |
| Strap width | 13, 16 i 19 mm |
| Strip thickness | 0.40- 0.80 mm |
| Type of strip | Steel strapping |
| Tool dimensions | 350x140x170 mm |
| Weight of the tool | 4 kg |
| Working pressure | 5.50 – 7.00 bar |
| Air consumption | 12 l/s |
| Max. zatezna sila | 2000 N – 7500 N (6.5 bar) |
| Tensile speed | 12 mt/min (2000 N) 5 mt/min (5500 N) 4 mt/min (7500 N) |
| Appearance of the joint | single-impression fitting |
| Tear strength of the joint | 75% of the tape's tear strength |
It is designed to be extremely durable and requires very little maintenance, making it an ideal solution for everyday industrial use.
ITA 41
Pneumatski kombinovani alat za pakovanje čeličnom trakom, namenjen za trake širine 19 mm, 25 mm i 32 mm.
The tool is equipped with three control buttons, allowing for manually controlled tightening of the steel strap according to the specifics of the packaging.
The ITA 41 is available in two engine versions – 9000 N and 15000 N, to ensure adaptable and optimal tightening depending on the application.
Easy to use, the tool comes with a built-in hook for hanging on the balancer, allowing for easier operation and more precise handling, as well as perfect double-notch sealing.
Technical Specifications
| Tool name | ITA 41 |
| Packaging method | Metal staples |
| Strap width | 19, 25 i 32 mm |
| Strip thickness | 0.60- 1.10 mm |
| Type of strip | Steel strapping |
| Tool dimensions | 500x130x360 mm |
| Weight of the tool | 10.30 kg |
| Working pressure | 5.50 – 7.00 bar |
| Air consumption | 12 l/s |
| Max. zatezna sila | 9000 N – 15000 N (6 bar) |
| Tensile speed | 3.8 mt/min (9000 N) 5,2 mt/min (15000 N) |
| Appearance of the joint | double stamping of the coupling |
| Tear strength of the joint | 75% of the tape's tear strength |
Powerful, fast, and durable, the ITA 41 is designed for a long service life and requires minimal maintenance.
ITA 42
Pneumatski kombinovani alat za pakovanje čeličnom trakom, namenjen za trake širine 19 mm, 25 mm i 32 mm.
The tool is equipped with two control buttons, which allow for automatic tightening of the steel strap, further speeding up and simplifying the packaging process. The ITA 42 is available in two engine versions – 9000 N and 15000 N, to ensure adaptable and optimal tensioning according to the specific application and type of load.
Easy to handle, the ITA 42 comes with a built-in balancer hook for easier and more comfortable operation, as well as precise double notch sealing.
Technical Specifications
| Tool Name: | ITA 42 |
| Packaging method | Metal staples |
| Strap width | 19, 25 i 32 mm |
| Strip thickness | 0.60- 1.10 mm |
| Type of strip | Steel strapping |
| Tool dimensions | 500x130x360 mm |
| Weight of the tool | 10.30 kg |
| Working pressure | 5.50 – 7.00 bar |
| Air consumption | 12 l/s |
| Max. zatezna sila | 9000 N – 15000 N (6 bar) |
| Tensile speed | 3.8 mt/min (9000 N) 5,2 mt/min (15000 N) |
| Appearance of the joint | double stamping of the coupling |
| Tear strength of the joint | 75% of the tape's tear strength |
Compact, fast, and reliable, the ITA 42 is built for long-lasting use and requires minimal maintenance, making it an ideal solution for intensive industrial applications.

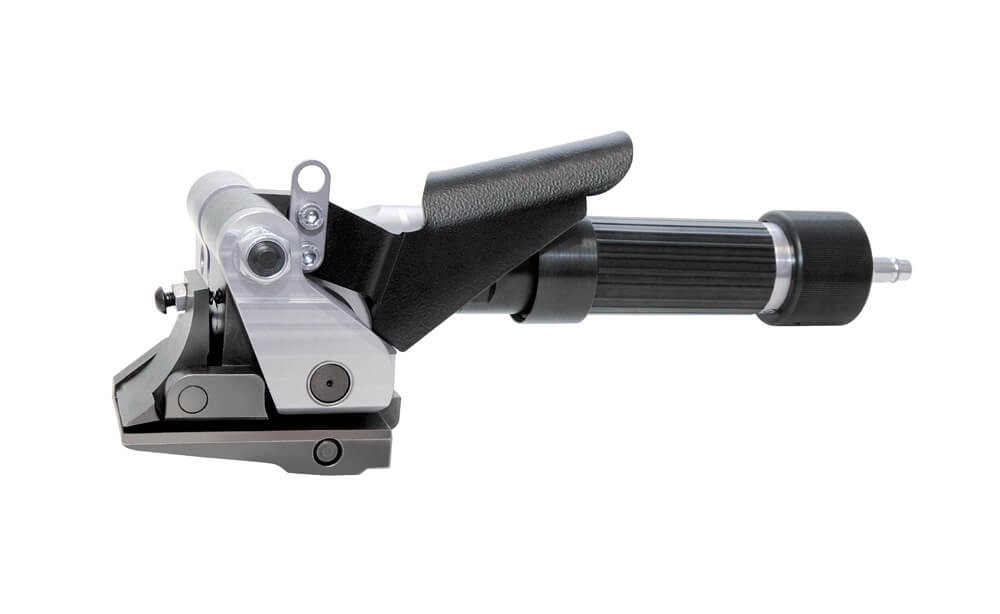

ITA 44
Pneumatski ručni natezač, koristiti se za pakovanje sa čeličnim trakama standardne i visoke zatezne čvrstoće 19, 25 i 32mm.
It allows the operator to easily and simply perform the process of tightening the strap around the product before joining it. Used in conjunction with the corresponding pneumatic pliers ITA 45.
Technical Specifications
| Tool name | ITA 44 – natezač |
| Packaging method | Metal staples |
| Strap width | 19, 25 i 32 mm |
| Strip thickness | 0.6 – 1.1 mm |
| Type of strip | Steel strapping |
| Tool dimensions | 340x115x90 mm |
| Weight of the tool: | 4 kg |
| Working pressure | 5.50 – 7.00 bar |
| Air consumption | 12 l/s |
| Max. zatezna sila | 9000 N (6.5 bar) |
| Tensile speed | 6 mt/min |
Powerful, fast, and strong, the ITA 44 was built to be durable and require very little maintenance.
ITA 45
Pneumatski ručni alat za zatvaranje spojnica, koriste se za spajanje trake pomoću metalnih spojnica. Veoma su pouzdana i jednostavna za rukovanje. Koriste se za pakovanje sa čelčnim trakama širine 19, 25 I 32 mm.
U kombinaciji sa širokim spektrom natezača (kao što su ITA 44, ITA 44 SP i ITA 84), ITA 45 omogućava savršeno jednostruko utiskivanje spojnice (single-notch) i predstavlja optimalno rešenje za sve primene sa čeličnom trakom.
Technical Specifications
| Tool name | ITA 45 – klešta |
|---|---|
| Packaging method | Metal staples |
| Strap width | 19, 25 i 32 mm |
| Strip thickness | 0.6 – 1.1 mm |
| Type of strip | Steel strapping |
| Tool dimensions | 340x140x80 mm |
| Weight of the tool | 2.9 kg |
| Working pressure | 5.50 – 7.00 bar |
| Air consumption | 12 l/s |
| Appearance of the joint | single-impression fitting |
| Tear strength of the joint | 75% of the tape's tear strength |
Powerful, fast, and reliable, the ITA 45 is built to be exceptionally durable and requires minimal maintenance, ensuring long-lasting and dependable performance.
INCA 16-19 HT
Pneumatic tool for strapping steel bands without a buckle
INCA is SIAT's pneumatic tool for strapping steel bands without using a buckle. This is a reliable device designed for medium and heavy industrial applications. It is equipped with two different tensioning motors and is standardly available in two strap sizes: 16 mm and 19 mm.
Technical Specifications
| Model | INCA 16-19 HT |
| Connection method | Without a connector |
| Type of joint | Without a connector |
| Strap width | 13–16–19 mm |
| Tape Thickness & Tensile Strength | 0,63–0,8 mm |
| Tensile strength | 5.500 N |
| Tensile speed | 5 m/min |
| Weight | ~9 kg |
| Type of joint (length) | Sealles |
| Type of joint | — |
| Dimensions (L × H × W) | 185 × 360 × 270 mm |
| Working pressure | 6–7 bar |
| Air consumption | 12 l/s |
STP-DN 19-25-32
Pneumatic tool for closing steel straps with double crimping of fasteners
The STP-DN is a SIAT pneumatic tool for closing steel straps using a buckle and double notch. It is powerful and easy to use, and is used in combination with the STTR and STTMR models. It is intended for industrial applications, and the closing unit can be rotated for more ergonomic and comfortable handling.
The tool is standardly available in three tape widths: 19 mm, 25 mm, and 32 mm.
Technical Specifications
| Model | STP-DN 19-25-32 |
| Description | Zipper, with slider, double stamping of slider |
| Strap width | 19–25–32 mm |
| Strip Thickness and Strength | 0,6–1,0 mm (Rmax 800 N/mm²) 0,63–0,8 mm (Rmax 950 N/mm²) |
| Weight | 5 kg |
| Type of joint | Double notch (min. 45 mm) |
| Type of joint | Overlap |
| Dimensions (L × H × W) | 195 × 420 × 230 mm |
| Working pressure | 6–7 bar |
| Air consumption | 12 l/s |
STP 19-25-32
Pneumatic tool for closing steel straps with a single single-impression joint
STP is the SIAT line of pneumatic closures for single-notch steel straps. The tool is easy to use, powerful, and reliable. It can be used in combination with the STTR and STTMR models. Intended for industrial applications, the closing unit can be adapted for operation in confined spaces, ensuring ergonomics and comfortable handling.
The tool is standardly available in three tape widths: 19 mm, 25 mm, and 32 mm.
Technical Specifications
| Model | STP 19-25-32 |
| Description | Zipper, with connector, single connector stamping |
| Strap width | 19–25–32 mm (3/4” – 1” – 1¼”) |
| Strip Thickness and Strength | 0,6–1,0 mm (Rmax 800 N/mm²) 0,63–0,8 mm (Rmax 950 N/mm²) |
| Weight | ~3,8 kg |
| Type of joint | One notch (min. 45 mm) |
| Type of joint | Overlap |
| Dimensions (L × H × W) | 105 × 240 × 90 mm 4.1 × 9.4 × 3.5″ |
| Working pressure | 6–7 bar |
| Air consumption | 12 l/s |
STSR 19-25-32
Pneumatic tool for strapping steel bands with a buckle
The STSR is a powerful and reliable tool for strapping steel bands, designed for heavy industrial applications. It is available in two versions: the standard 3-button model and the 2-button model (upon request). It is standardly supplied in three tape widths: 19 mm, 25 mm, and 32 mm.
Technical Specifications
| Model | STSR 19-25-32 (3 tastera) |
| Connection method | With a connector |
| Type of joint | Double coupling |
| Strap width | 19–25–32 mm |
| Tape Thickness & Tensile Strength | 0,6–1,0 mm |
| Tensile strength | 9.000 N |
| Tensile speed | 6 m/min |
| Weight | ~10 kg |
| Type of joint (length) | Double notch (min. 45 mm) |
| Type of joint | Overlap |
| Dimensions (L × H × W) | 180 × 430 × 305 mm |
| Working pressure | 6–7 bar |
| Air consumption | 12 l/s |
| Tape release Button | Taster |

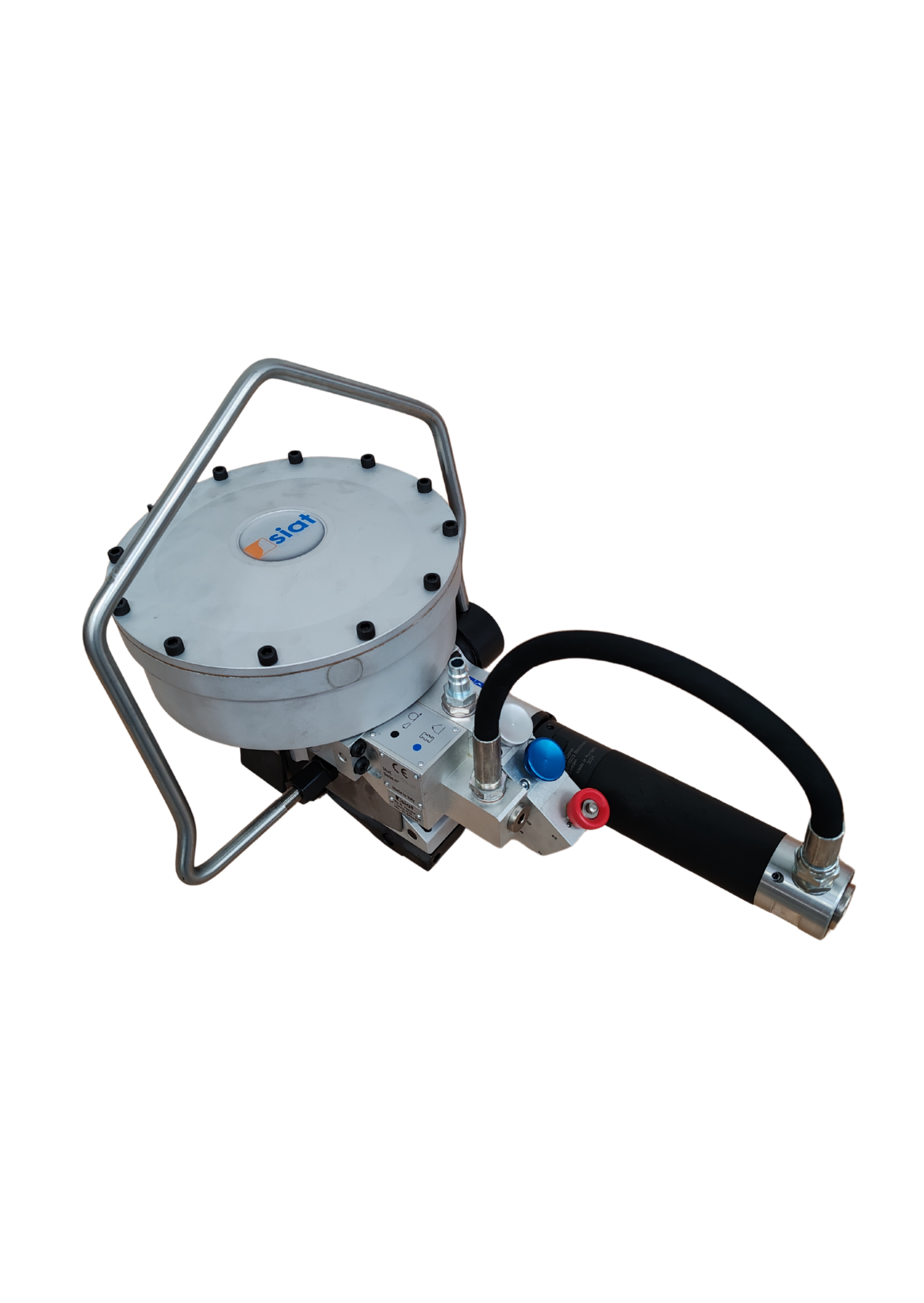

STS 25 i 32 PLUS
Pneumatic tool for strapping steel bands with a buckle
STS 25 & 32 PLUS 4 je snažan i pouzdan pneumatski alat za vezivanje čeličnih traka, namenjen teškim industrijskim primenama, posebno u pogonima sa niskim pritiskom vazduha.
Zahvaljujući novom dizajnu — manjem, ojačanom i lakšem kućištu u poređenju sa prethodnim HT modelom — alat može raditi savršeno čak i pri niskom pritisku (od 4,5 bara) i pruža stabilan i izuzetno kvalitetan spoj sa visokim integritetom ureza.
The housing is smaller and lighter than that of the previous STSR 32 HT model, which makes it easier to handle. The low-pressure operation function (from 4.5 bar) is also available for 25 mm wide steel strip.
Technical Specifications
| Model | STS 25 & 32 PLUS 4 (2 tastera) |
| Connection method | With a connector |
| Type of joint | Double coupling |
| Strap width | 25–32 mm |
| Tape Thickness & Tensile Strength | 0,6–1,0 mm |
| Tensile strength | 9.000 N |
| Tensile speed | 6 m/min |
| Weight | ~10,8 kg |
| Type of joint (length) | Double notch (min. 45 mm) |
| Type of joint | Overlap |
| Dimensions (L × H × W) | 185 × 305 × 435 mm |
| Working pressure | 4,5–7 bar |
| Air consumption | 12 l/s |
POLI MT 13 – 19 mm
Kompaktan, jednostavan za upotrebu i svestran alat za vezivanje.
Namenjen je za srednje teške i teške industrijske primene. Alat je dostupan u tri dimenzije trake: 13 mm, 16 mm i 19 mm.
U zavisnosti od verzije, omogućava maksimalnu silu zatezanja od 3500 N, čime odgovara različitim zahtevima industrijske primene.
Technical Specifications
- Plastic Strapping: POLI MT 13 – 19 – PET Strapping, width from 13 to 19 mm, thickness 0.60–1.27 mm
- Working air pressure: between 0.5 and 0.8 MPa
- Welding: vibration welding – without metal fasteners
- Weight of the tool: POLI MT 13 – 19 – 5.2 kg
Key functionalities
- Three-in-one work cycle: one press activates the strap tensioning, vibration welding joins the ends without metal clips, and then the excess strap is automatically cut.
- Pneumatic drive (compressed air): ensures reliable operation, easy maintenance, and operation without overheating.
- Speed and efficiency — tensioning, welding, and cutting are performed in a single cycle, significantly speeding up the packaging process.
- Lower packaging costs — by using PET straps instead of metal ones, material costs are reduced and the need for fasteners is eliminated.
Industrial applications
- Wood industry
- Corrugated Packaging Industry
- Steel industry
- Building materials (e.g., brick, blocks)
- Logistics, warehousing, and transportation
- All other applications requiring reliable packaging for heavy loads
POLI MT 16 – 19 mm
Kompaktan, jednostavan za upotrebu i svestran alat za vezivanje.
Namenjen je za srednje teške i teške industrijske primene. Alat je dostupan u tri dimenzije trake: 13 mm, 16 mm i 19 mm.
U zavisnosti od verzije, omogućava maksimalnu silu zatezanja od 3500 N, čime odgovara različitim zahtevima industrijske primene.
Technical Specifications
- Plastic Strapping: POLI MT 13 – 19 – PET Strapping, width from 13 to 19 mm, thickness 0.60–1.27 mm
- Working air pressure: between 0.5 and 0.8 MPa
- Welding: vibration welding – without metal fasteners
- Weight of the tool: POLI MT 13 – 19 – 5.2 kg
Key functionalities
- Three-in-one work cycle: one press activates the strap tensioning, vibration welding joins the ends without metal clips, and then the excess strap is automatically cut.
- Pneumatic drive (compressed air): ensures reliable operation, easy maintenance, and operation without overheating.
- Speed and efficiency — tensioning, welding, and cutting are performed in a single cycle, significantly speeding up the packaging process.
- Lower packaging costs — by using PET straps instead of metal ones, material costs are reduced and the need for fasteners is eliminated.
Industrial applications
- Wood industry
- Corrugated Packaging Industry
- Steel industry
- Building materials (e.g., brick, blocks)
- Logistics, warehousing, and transportation
- All other applications requiring reliable packaging for heavy loads
POLI HT 25 – 32 mm
A reliable, powerful, and fast tying tool equipped with an efficient Atlas Copco motor.
The tool is intended for use in heavy industry, particularly in sectors such as the iron and steel industry, building materials production, and the timber industry. It's unique because it can be adapted to 25 mm and 32 mm wide straps.
U zavisnosti od verzije, omogućava maksimalnu silu zatezanja od 4500 N čime odgovara različitim zahtevima industrijske primene.
Technical Specifications
- Plastic Strapping: POLI MT 13 – 19 – PET Strapping, width from 13 to 19 mm, thickness 0.60–1.27 mm
- Working air pressure: between 0.5 and 0.8 MPa
- Welding: vibration welding – without metal fasteners
- Weight of the tool: POLI MT 13 – 19 – 5.2 kg
Key functionalities
- Three-in-one work cycle: one press activates the strap tensioning, vibration welding joins the ends without metal clips, and then the excess strap is automatically cut.
- Pneumatic drive (compressed air): ensures reliable operation, easy maintenance, and operation without overheating.
- Speed and efficiency — tensioning, welding, and cutting are performed in a single cycle, significantly speeding up the packaging process.
- Lower packaging costs — by using PET straps instead of metal ones, material costs are reduced and the need for fasteners is eliminated.
Industrial applications
- Wood industry
- Corrugated Packaging Industry
- Steel industry
- Building materials (e.g., brick, blocks)
- Logistics, warehousing, and transportation
- All other applications requiring reliable packaging for heavy loads
