Stretch machines for wrapping pallets
Pallet wrapping machines, known as stretch wrapping machines, are key equipment in logistics and distribution. Their role is to quickly and safely stabilize the load on pallets, thereby reducing damage during transport and storage. They are available in semi-automatic and fully automatic versions, so they can correspond to different sizes, weights and shapes of pallets. Stretch machines bring numerous advantages: brže pakovanje, ujednačen kvalitet omotavanja, manji fizički napor radnika i smanjenu potrošnju folije.

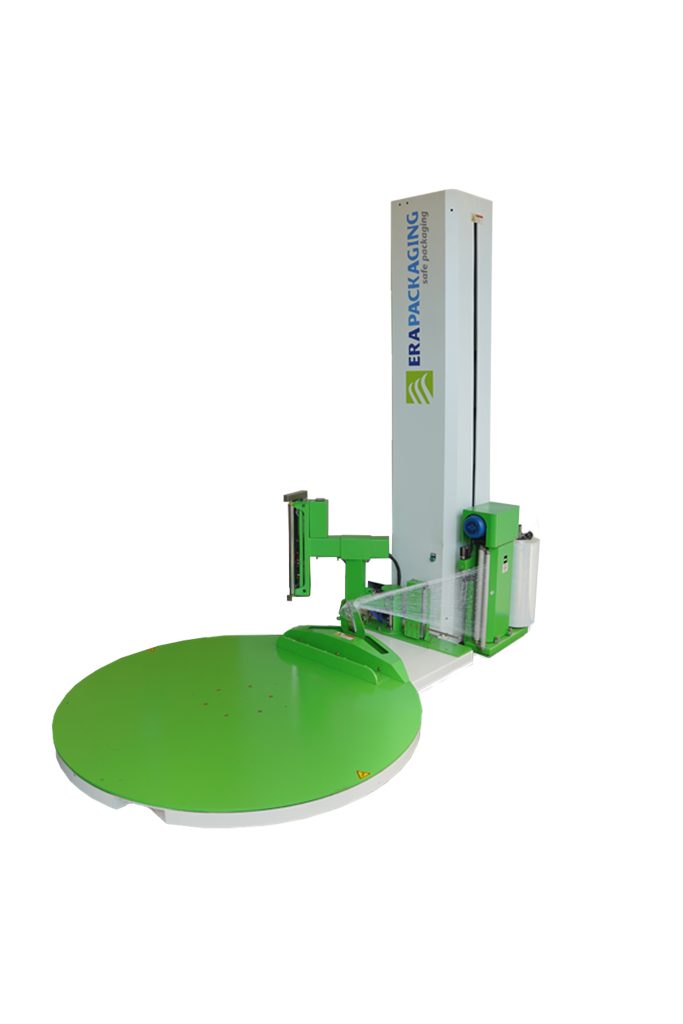

ORBITAL S ECO Semi-automatic stretch wrapper with rotating platform without pre-stretching system
The basic model of a pallet wrapping machine, designed to simplify and speed up the packaging process. Thanks to its practical functions and simple operation, it's an ideal choice for smaller business systems and easy to moderately demanding packaging needs.
Technical Specifications – Orbital S ECO
| Power connection | 230 V AC / 1 kW |
| Compressed air required | Ne |
| Machine weight | 700 kg |
| Available wrapping programs | Single wrapping |
| Wrapping up - down | |
| Single wrapping with top film | |
| Wrapping up and down with top film | |
| Manual mode | |
| Film stretching system | Mechanical film brake |
| Maximum load weight | 1500 kg |
| Maximum pallet dimensions | 1200 × 1000 mm |
| Diameter of the working surface | 1500 mm |
| Maximum wrapping height | 2250 mm |
| Additional features | Automatic pallet height detection |
Main Features
- Mechanical film brake – Precise film tension reduces consumption and saves costs
- Frequency-controlled motors – Enable even wrapping and pallet stability
- Simple Management – An intuitive interface allows for quick and easy use
- Robust Construction – Sturdy and durable, suitable for demanding industrial conditions
- Versatility in packaging – Adaptable to different types and sizes of cargo
ORBITAL S ECO optimizes wrapping, saves time, and reduces costs, offering a reliable, simple, and economical solution for efficient packaging.
ORBITAL S ECO Slimline
Semi-automatic stretcher with rotating platform without pre-stretching system
ORBITAL S ECO SLIMLINE is a high-quality pallet wrapping machine, designed to optimize your packaging process. Thanks to its advanced features and simple operation, this stretch machine provides reliability and efficiency in a variety of industrial applications. Whether you manage a small distribution center or a manufacturing facility, the ORBITAL S ECO SLIMLINE is the ideal choice for improving pallet packaging.
Technical characteristics – ORBITAL S ECO SLIMLINE
| Power connection | 230 V AC / 1 kW |
| Compressed air required | Ne |
| Machine weight | 700 kg |
| Available wrapping programs | Single wrapping |
| Wrapping up - down | |
| Single wrapping with top film | |
| Wrapping up and down with top film | |
| Manual mode | |
| Film stretching system | Mechanical film brake |
| Maximum load weight | 1500 kg |
| Maximum pallet dimensions | 1200 × 1000 mm |
| Diameter of the working surface | 1500 mm |
| Maximum wrapping height | 2250 mm |
| Additional features | Automatic pallet height detection |
Main Features
- Mehanička kočnica za foliju – Omogućava precizno zatezanje folije, smanjuje nepotrebnu potrošnju i štedi troškove.
- Motori sa frekventnom regulacijom – Podesiva brzina stola i nosača folije za ujednačeno omotavanje i stabilnost paleta.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robusna konstrukcija – Čvrsta i izdržljiva, pogodna za zahtevne industrijske uslove i dug vek trajanja.
With ORBITAL S ECO SLIMLINE you optimize the packaging process, increase efficiency and reduce costs of logistics operations.
ORBITAL PS ECO Slimline
Semi-automatic stretcher with rotating platform with pre-stretching system
ORBITAL PS ECO SLIMLINE is a high-quality pallet wrapping machine, designed to optimize your packaging process. Thanks to its advanced features and simple operation, this stretch machine provides reliability and efficiency in a variety of industrial applications. Whether you are managing a small distribution center or a manufacturing facility, the ORBITAL 2000B ECO SLIMLINE is the ideal choice for improving pallet packaging.
Technical characteristics - ORBITAL PS ECO SLIMLINE
| Power connection | 230 V AC / 1,49 kW |
| Compressed air required | Ne |
| Machine weight | 700 kg |
| Available wrapping programs | Single wrapping |
| Wrapping up - down | |
| Single wrapping with top film | |
| Wrapping up and down with top film | |
| Manual mode | |
| Film stretching system | Fiksni sistem pred-istezanja folije 250% |
| Maximum load weight | 1500 kg |
| Maximum pallet dimensions | 1200 × 1000 mm |
| Diameter of the working surface | 1500 mm |
| Maximum wrapping height | 2250 mm |
| Additional features | Automatic pallet height detection |
Main Features
- Sistem pred-istezanja folije 250% – Povećava efikasnost korišćenja folije i smanjuje troškove, obezbeđujući čvrsto i sigurno pakovanje.
- Motori sa frekventnom regulacijom – Omogućavaju precizno podešavanje brzine rotacije stola i nosača folije za ujednačeno i kvalitetno pakovanje.
- Jednostavno upravljanje – Intuitivan kontrolni panel olakšava rad i smanjuje vreme obuke operatera.
- Robusna konstrukcija – Čvrsta i izdržljiva, pogodna za zahtevne industrijske uslove i dug vek trajanja.
With ORBITAL PS ECO SLIMLINE you optimize packaging, increase efficiency and reduce costs, with precision and flexibility for all types of cargo.

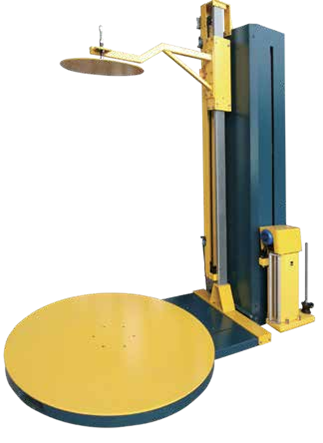

ORBITAL S Semi-automatic stretch wrapper with rotating platform without pre-stretching system
ORBITAL S series of stretch wrapping machines are equipped with PLC control, which provides automatic turntable resetting as well as precise pallet height detection using photoelectric sensors. Thanks to these features, the packaging process becomes faster, more accurate, and more reliable.
With stable performance and easy operation, all wrapping parameters are easily adjusted via the LCD controller – whether it's a touchscreen or a text panel. In this way, the user can optimally adapt the packaging process to the specific requirements of the product and the production environment.
Technical characteristics - ORBITAL S
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1 kW |
| Jedinica za istezanje filma | Mechanical film brake |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Dostupni programi | Jedno umotavanje |
| Gore-dole umotavanje | |
| Jedno umotavanje sa gornjom prekrivkom | |
| Gore-dole umotavanje sa gornjom prekrivkom | |
| Ručno | |
| Opciono | Rampa |
| Uslovi okoline | Vlažnost vazduha ≤90%, temperatura 00C- 400C |
| Ostale funkcije | Tačna pozicija zaustavljanja, Automatsko detektovanje visine |
With ORBITAL S, you optimize packaging, increase efficiency, and reduce costs, while maintaining precision and flexibility for all types of cargo.
ORBITAL PS Semi-automatic stretch wrapper with rotating platform and pre-stretch system
ORBITAL PS is an advanced pallet wrapping machine designed to enhance your packaging process. With its superior features and modern technologies, this stretch machine delivers precision, efficiency, and reliability. Whether you manage a large distribution center or a manufacturing facility, ORBITAL PS optimizes pallet wrapping and improves operational efficiency.
Tehničke karakteristike – ORBITAL PS
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.
With ORBITAL PS you optimize packaging, reduce costs, and improve the quality of pallet wrapping, while ensuring reliability and top-notch performance for logistics, manufacturing, and distribution.
ORBITAL PS – HIGH
Semi-automatic stretcher with rotating platform with pre-stretching system
ORBITAL PS – HIGH is an advanced pallet wrapping machine, designed to improve your packaging process. With its superior features and modern technologies, this stretch machine provides precision, efficiency and reliability. Whether you manage a large distribution center or a production facility, ORBITAL PS – VISOKA optimizes pallet packaging and improves operational efficiency.
Technical characteristics - ORBITAL PS - HIGH
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete:3,1 | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.
With ORBITAL PS HIGH you optimize packaging, reduce costs and improve the quality of pallet wrapping, with reliability and top performance for logistics, production and distribution.

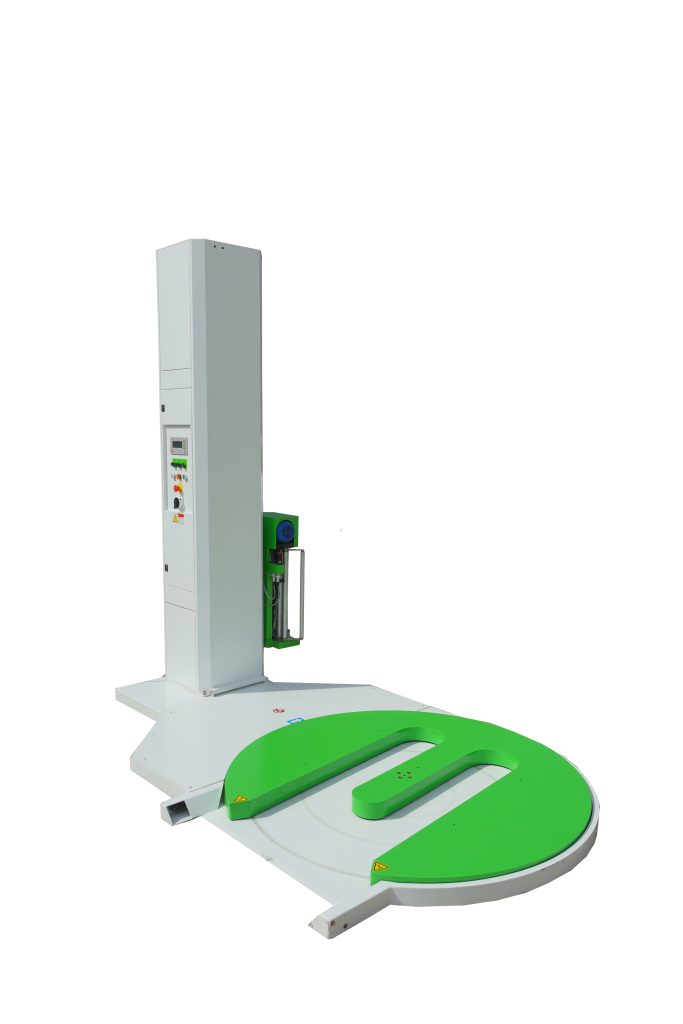

ORBITAL PS M
Semi-automatic stretcher with rotating platform
ORBITAL PS M is an advanced pallet wrapping machine, designed to improve your packaging process. With its superior features and modern technologies, this stretch machine provides precision, efficiency and reliability. Whether you manage a large distribution center or a manufacturing facility, ORBITAL PS M optimizes pallet packing and improves operational efficiency.
Technical characteristics - ORBITAL PS M
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
| Kontrola parametara mašine | preko PLC-a |
| Orjentacija otvora M platforme | 900/ 1800 /2700 |
| Prečnik platforme | 1500 mm (opciono 1650 mm) |
| Max. visina palete | 2100 mm (3100 mm opciono) |
| Max. težina terete | 1500 kg (opciono 2000 kg) |
| Capacity | do 20 paleta na sat |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.
With ORBITAL PS M you optimize packaging, reduce costs and improve the quality of pallet wrapping, with reliability and top performance for logistics, production and distribution.
ORBITAL PS K
Semi-automatic stretcher with rotating platform with pre-stretching system and automatic foil cutting
ORBITAL PS K is an advanced pallet wrapping machine, designed to improve your packaging process. With its superior features and modern technologies, this stretch machine provides precision, efficiency and reliability. Whether you manage a large distribution center or a manufacturing facility, ORBITAL PS K optimizes pallet packing and improves operational efficiency.
Tehničke karakteristike – ORBITAL PS K
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.
With ORBITAL PS K you optimize packaging, reduce costs and improve the quality of pallet wrapping, with reliability and top performance for logistics, production and distribution.
ORBITAL PS F (full automatic)
Automatic stretcher with rotating platform with pre-stretching system
ORBITAL PS F is a fully automatic stretching machine equipped with the remote control, motorized pre-tensioning, as well as a system for automatic film extraction and cutting, which enables faster, simpler and more reliable work without the need for manual intervention.
Technical characteristics - ORBITAL PS F
| Power supply | 230Vac / 1,49 kW |
| Potrebni komprimirani vazduh | Da, suvi vazduh |
| Machine weight | 750 kg |
| Dostupni programi | Gore-dole umotavanje |
| Gore-dole umotavanje sa gornjim papirom | |
| Ručno | |
| Nosač folije | Fiksni sistem prethodnog rastezanja 250% |
| Maksimalno opterećenje | 2000 kg |
| Maksimalna veličina palete | 1200 × 1200 mm |
| Prečnik površine umotavanja | 1650 mm |
| Maksimalna visina umotavanja | 2400 mm |
| Ostale funkcije | Tačna pozicija zaustavljanja, Automatsko detektovanje visine, Automatsko pričvršćivanje i sečenje folije, Daljinsko upravljanje |
Main Features
- Automatsko pričvršćivanje i sečenje folije: Folija se lako nanosi i precizno seče, čime se ubrzava proces.
- Motorni sistem za prethodno rastezanje (250%): Smanjuje potrošnju folije i povećava stabilnost tereta.
- Motori sa frekventnom regulacijom: Precizno podešavanje brzine za optimalno umotavanje.
- Jednostavno upravljanje: Intuitivne komande i jasan kontrolni panel olakšavaju rad operaterima.
- Robusna konstrukcija: Otporna na dugotrajnu i intenzivnu upotrebu, garantuje pouzdanost i dug vek trajanja.
ORBITAL PS F is an efficient automatic pallet wrapping machine that saves time and material while stabilizing the load.

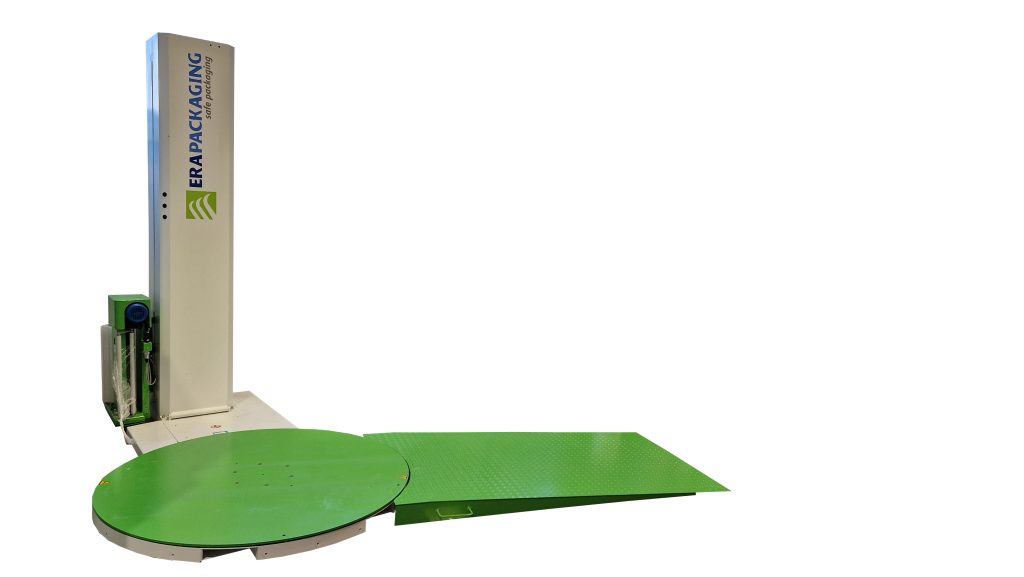

ORBITAL PS W
Semi-automatic stretcher with rotating platform with pre-stretching system and integrated scale
ORBITAL PS W is an advanced pallet wrapping machine, designed to improve your packaging process. With its superior features and modern technologies, this stretch machine provides precision, efficiency and reliability. Whether you manage a large distribution center or a manufacturing facility, ORBITAL PS W optimizes pallet packing and improves operational efficiency.
Machine models
- Orbital S – bez sistema za predistezanje
- Orbital PS – sa sistemom za predistazenje folije do 250%

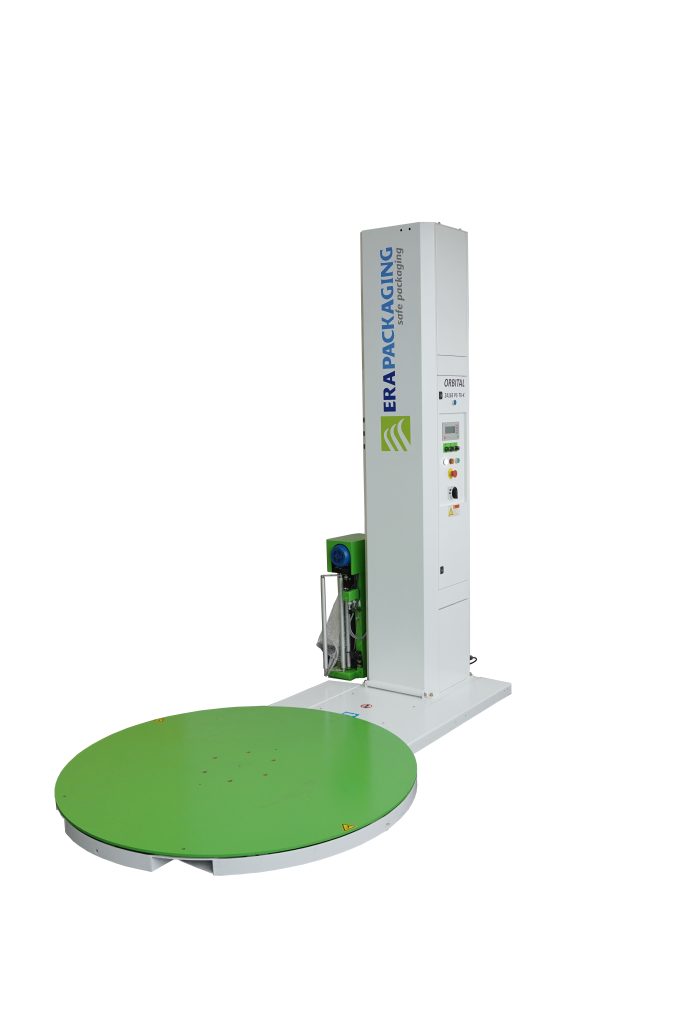

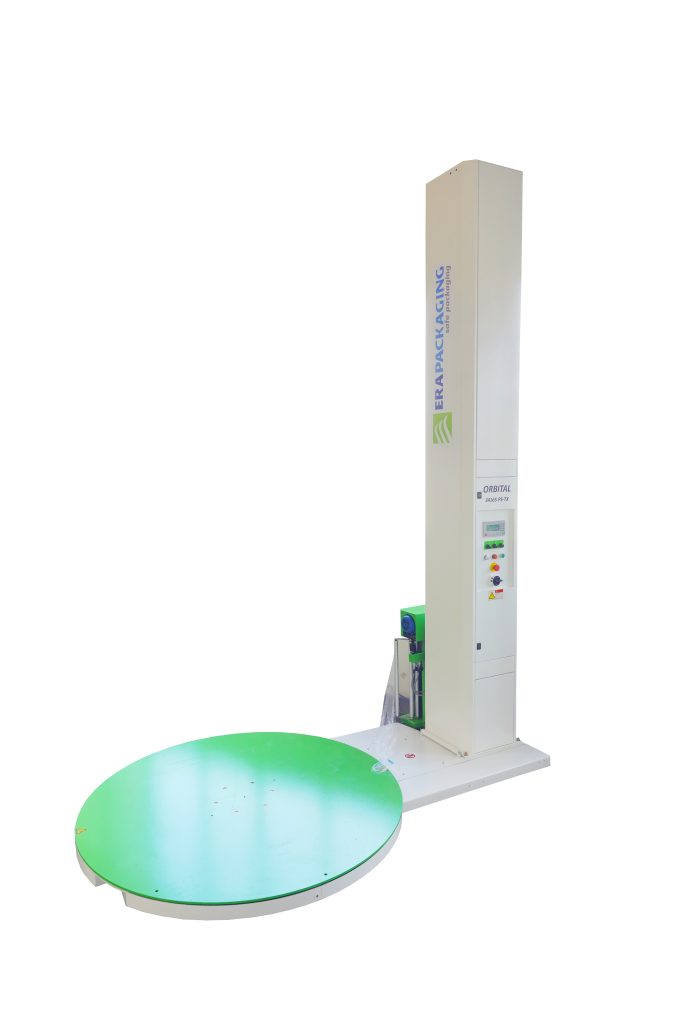

Technical characteristics - ORBITAL PS W
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.
With ORBITAL PS W you optimize packaging, reduce costs and improve the quality of pallet wrapping, with reliability and top performance for logistics, production and distribution.

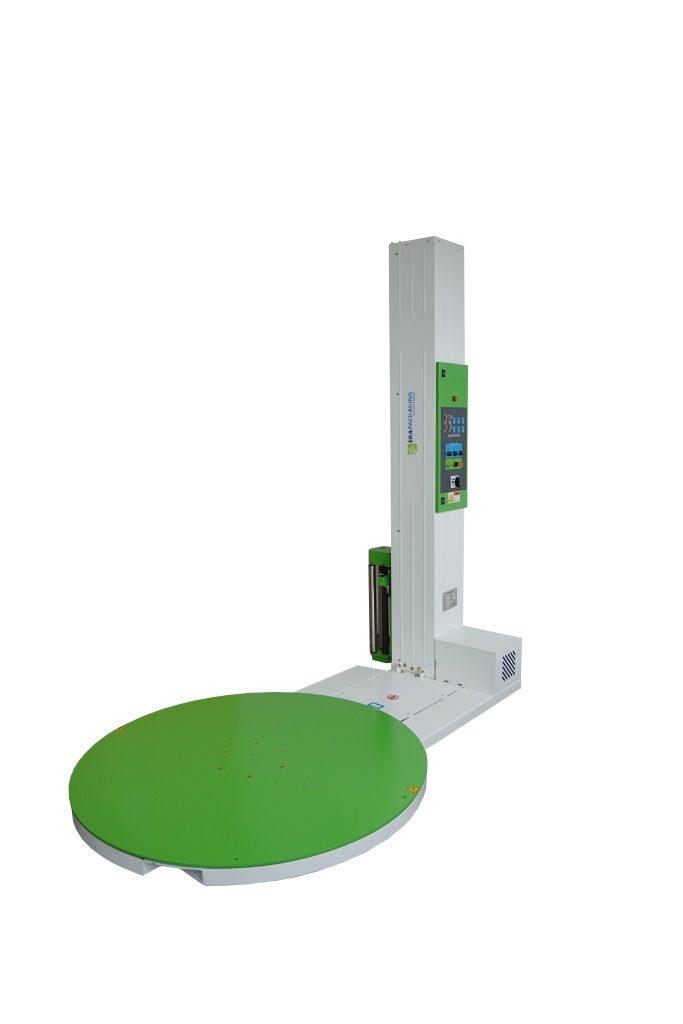

ORBITAL PP
Automatic stretcher with rotating platform and pressure plate
ORBITAL PP Stretch machine with pressure plate ensures stable and safe wrapping of light or unstable pallets. The pressure plate fixes the load from above, prevents it from moving and enables even and high-quality packing. It is ideal for industries that require safety and reliability in every wrapping cycle.
Machine models
- Orbital S – bez sistema za predistezanje
- Orbital PS – sa sistemom za predistazenje folije do 250%
Technical specifications –ORBITAL PP
| Power supply | 1P, AC 220V/110V 50/60Hz |
| Brzina okretne ploče (rpm) | 0–10 |
| Prečnik okretne ploče (mm) | Φ1500 (opciono Φ1650/1800/2000/2200) |
| Prečnik gornje ploče (mm) | Φ450 (opciono Φ600/800) |
| Nosivost (kg) | 2000 |
| Visina stuba (mm) | 2400 (opciono 2700/3000/3200/3400) |
| Efektivna visina (mm) | Visina stuba minus 400 |
| Materijal za pakovanje (mm) | Š ≤500, spoljašnji prečnik ≤Φ280, LLDPE folija |
Main Features
- Driven 250% film pre-stretch system – Enables more wraps with the same amount of film, reducing costs and increasing efficiency.
- Frequency-controlled motors – Precise adjustment of the table and film carrier speed for even and high-quality packaging.
- Precise pallet positioning – Even wrapping without overlaps or gaps, with a stable and secure load.
- Simple operation – An intuitive control panel makes operation easier and reduces training time.
- Robust Construction – High-quality materials and long lifespan, reliable operation even in demanding conditions.

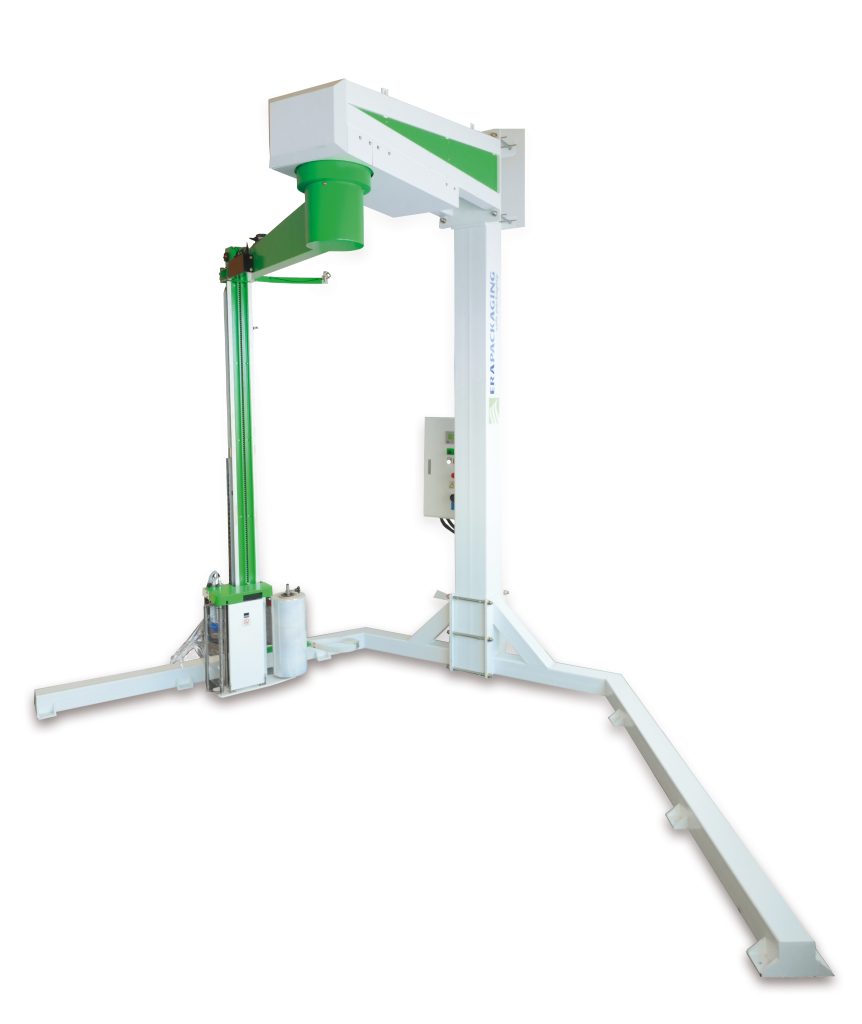

ORBITAL 2300 B
Semi-automatic stretch machine with rotary arm
ORBITAL 2300 B machine for automatic or semi-automatic packaging of pallets with the help of stretch film, with with a rotating arm (they rotate the arm), and not by classically turning the palette on the board.
It is suitable for industrial applications — stable packaging of large, heavy pallets and irregularly shaped pallets that would be impractical for standard turntable stretchers.
Technical specifications – ORBITAL 2300 B
| Kontrola parametara mašine preko PLC-a | |
| Sistem za predistezanje folije | do 250 % |
| Brzina okretanja ruke | 0–22 rpm |
| Prečnik rotacije (mm) | Φ1800 mm |
| Maksimalna dimenzij palete | 2400 (opD: 1300 mm x Š: 1300 mm |
| Maksimalna visina palete | 000 / 2400 / 2800 / 3000 mm |
Main Features
- Robusna konstrukcija — zahvaljujući rotirajućoj ruci (umesto rotirajuće ploče), može da pakuje velike, teške i nepravilno oblikovane palete koje bi bile nepraktične za standardne „turntable“ strojeve.
- Veća efikasnost i stabilnost — sistem predistezanja folije omogućava bolju stabilnost robe i smanjuje potrošnju folije.
- Podesiva brzina i fleksibilnost — podesiva brzina rotacije omogućava prilagođavanje različitim vrstama tereta i folije.
- Dobro za velike i teške palete — pogodan za industriju, logistiku, skladištenje i transport gde su palete velike, teške ili nepravilnog oblika.
- Opcija automatskog rada — kod automatskih varijanti (ili uz dodatne opcije) može da radi samostalno, sa automatskim podešavanjem visine, sečenjem folije, što štedi vreme i rad.
ORBITAL 2300 B optimizes wrapping, saves time and reduces costs, offering a reliable, simple and economical solution for efficient packaging.

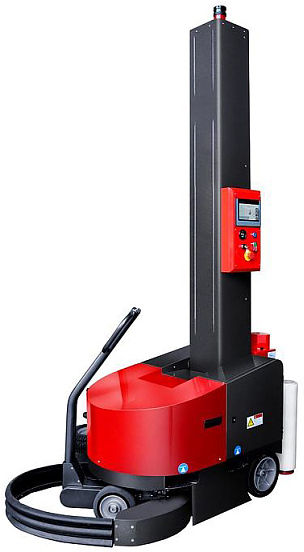

ORBITAL CTP – robot
Self-propelled machine for wrapping pallets with stretch film
This machine enables reliable and efficient wrapping of pallets of different shapes, sizes and weights, without the need to move them. It is equipped as standard with a film pre-stretching system, which significantly reduces material consumption and brings savings in the packaging process.
The machine works on battery power, which ensures complete mobility and the ability to work around pallets of any dimensions, up to a wrapping height of 2400 mm. With an intuitive control panel, the user can easily set programs and wrapping parameters, which ensures adaptation to any type of load.
Thanks to its simple handling and high flexibility, the self-propelled stretch machine is an ideal solution for warehouses, production facilities and distribution centers where a wide range of pallets are processed.
Technical specifications –ORBITAL CTP
| Power supply | 1P AC220V/110V 50/60Hz |
| Radno napajanje | DC 24V |
| Kapacitet baterije (Ah) | 80 Ah |
| Vreme punjenja | 7 sati – do 200 paleta po punjenju |
| Brzina kretanja (m/min) | 90 (podesivo) |
| Dimenzije palete (mm) | 600 × (600 – ∞) |
| Maksimalna visina umotavanja (mm) | 2400 (opciono 2800) |
| Materijal folije (mm) | LLDPE folija, Š ≤500, spoljašnji prečnik ≤Φ250 |

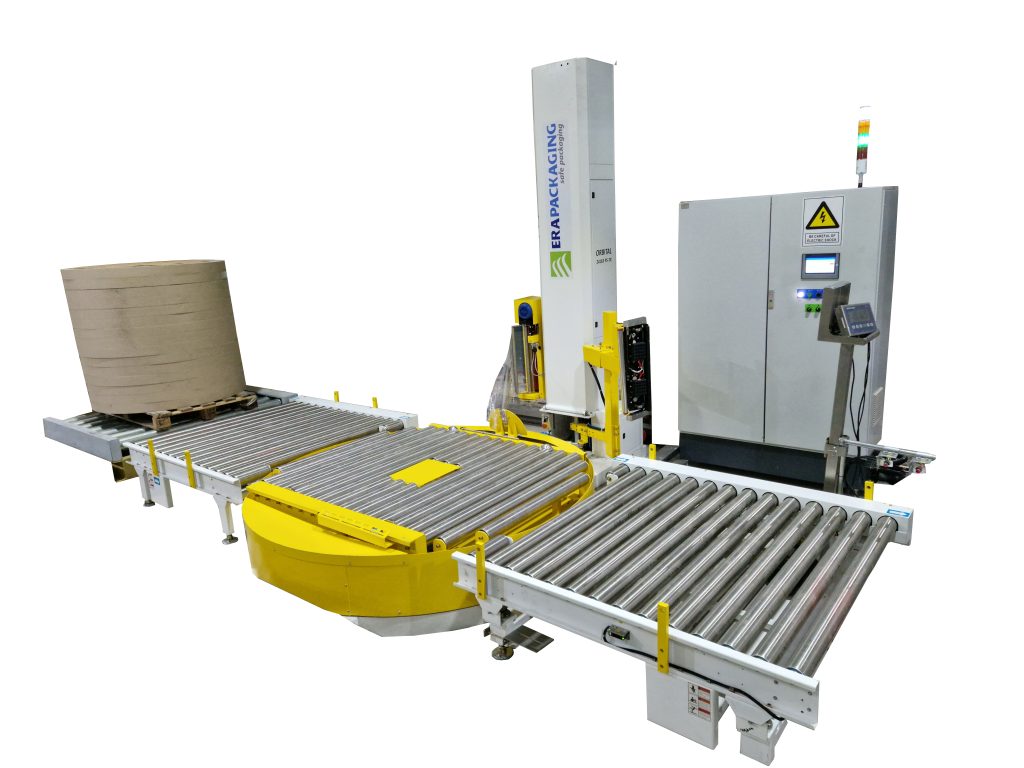

ORBITAL DP S
Automatic stretching line with rotating platform
ORBITAL DP S is an advanced pallet wrapping machine, designed to improve your packaging process. With its superior features and modern technologies, this stretch machine provides precision, efficiency and reliability. Whether you manage a large distribution center or a manufacturing facility, ORBITAL DP S optimizes pallet packaging and improves operational efficiency.
Technical characteristics - ORBITAL DP S
| Power supply | 1P, AC220V/110V, 50 Hz/60Hz |
| Snaga | 1.25 kW |
| Jedinica za istezanje filma | Zatezanje filma, kontroliše se pomoću frekventog regulatora |
| Brzina rotacije | 0-10 r/min |
| Dimenzija okretne platforme | Fi 1500 (opciono: Fi 1650/ Fi1800/ Fi 2000/ Fi2200) |
| Visina stuba mašine | H=2400 mm (opciono: 2000/ 2700/ 3000/ 3200/ 3400) |
| Materijal za pakovanje | LLDPE streč film, širina ≤500mm, spoljni prečnik ≤280mm |
| Predmet pakovanja | Nosivost: fi 1500 mm: 1500 kg |
| Nosivost: ≥fi1650 mm: 2000 kg | |
| Maks. visina palete: visina stuba mašine minus 400 mm | |
| Machine weight | 650 kg – 750 kg |
| Opciono | Rampa |
| Buka | ≤75dB (A) |
Main Features
- Snažna automatska mašina za strečovanje sa okretnim postoljem i integrisanim transporterom u zoni pakovanja.
- Motorizovano predistezanje do 250%, sa podešavanjem na kontrolnoj tabli
- Automatsko izvlačenje i sečenje folije
- Automatsko pokretanje i zaustavljanje strečovanja
- Funkcija ručnog i automatskog upravljanja
- Fotoćelija za automatsko detektovanje visine palete
- Touch screen za upravljanje, sa 12 dostupnih programa strečiranja
- Kontrola parametara mašine preko PLC-a
- Mašina je integrisana unutar automatske linije za pakovanje.
- Brzina okretanja ruke od 0 do 22 rpm
With ORBITAL DP S you optimize packaging, reduce costs and improve the quality of pallet wrapping, with reliability and top performance for logistics, production and distribution.
ORBITAL 2400 B
Stretch machine with rotary arm
ORBITAL 2400 B is an automatic (or semi-automatic, depending on the configuration) machine for wrapping pallets with stretch film, with a fixed rotary arm, instead of a classic rotating platform.
Such a system is suitable for stable and safe wrapping of large and/or irregular pallets, often in industrial or logistics facilities.
Technical Specifications – ORBITAL 2400 B
| Power supply | 3P, AC380V 50Hz |
| Air pressure (MPa) | 0.6–0.8 |
| Brzina okretne (rpm) | 0–12 |
| Prečnik rotacije (mm) | Φ1700 × 2200 |
| Visina stuba (mm) | |
| Materijal za pakovanje (mm) | Š ≤500, spoljašnji prečnik ≤Φ280, LLDPE folija |
| Machine dimensions (mm) | 2080 × 1640 × 2850 |
| Okruženje | Vlažnost ≤90%, temperatura −10 do 40 °C |
ORBITAL 700 A
Stretch machine with rotary arm and integrated palletizer
ORBITAL 700 a is a practical and mobile solution for wrapping pallets with stretch film, thanks to the fact that it has a built-in manual palletizer. The pallet is wrapped on the spot, without the need to place it on a rotary table, which significantly simplifies work in warehouses and distribution centers.
Wrapping is done using stretch film, which is additionally tightened with a mechanical brake, which achieves a stable and safe fixing of the goods on the pallet. Because of its construction and flexibility. ORBITAL 700 a easily adapts to different types and sizes of pallets, making it suitable for environments where pallets of uneven dimensions or shapes are handled
Tehničke karakteristike – ORBITAL 700A
| Power supply | 1P AC220V/110V 50/60Hz |
| Brzina okretne (rpm) | 0–10 |
| Prečnik rotacije (mm) | Φ1700 × 540 |
| Širina viljuškara (mm) | 540 |
| Nosivost (kg) | 2000 |
| Materijal za pakovanje (mm) | Š ≤500, spoljašnji prečnik ≤Φ280, LLDPE folija |
| Machine dimensions (mm) | 1750 × 1090 × 2100 |
| Buka | ≤75 dB(A) |
| Okruženje | Vlažnost ≤90%, temperature −10 do 40 °C |
ORBITAL 800B – Mini
ORBITAL 800B – MINI is a compact stretch machine intended for wrapping smaller pallets, boxes and cardboard packages, while it is not intended for large industrial pallets.
It is equipped with a film pre-stretching system and uses standard stretch films for this type of application.
Svojim dimenzijama i funkcionalnošću idealna je za fabrike, skladišta i distributivne centre, posebno tamo gde se obrađuju manje ili srednje količine robe i gde je potrebna brza i pouzdana zaštita proizvoda.
Tehničke karakteristike – ORBITAL 800B – MINI
| Power supply | 1P AC 220V/110V 50/60Hz |
| Brzina okretne (rpm) | 0–10 |
| Prečnik rotacione ploče (mm) | Φ400, Φ600, 500 |
| Vazdušni cilindar (mm) | 60 |
| Nosivost (kg) | 60 |
| Materijal za pakovanje | Š ≤ 500 mm, spoljašnji prečnik ≤ Φ280 mm, LLDPE folija |
| Buka | ≤ 75 dB(A) |
| Okruženje | Vlažnost ≤ 90%, temperatura -10 – 40 ºC |
ORBITAL 900B – Mini
ORBITAL 900B – Mini is a semi-automatic machine that comes with a film pre-stretching system, specially designed for wrapping suitcases, luggage and other specific packages. It enables fast, neat and safe packaging thanks to stable operation and precise control of film tension.
Technical Specifications ORBITAL 900B – Mini
| Power supply | 1P, AC 220V 50Hz |
| Brzina okretne ploče (rpm) | 0–20 |
| Efektivna širina (mm) | 400 |
| Efektivna visina (mm) | 850 |
| Pogodne dimenzije paketa | L(250–1200) × Š(20–400) × V(200–850), max 60 kg |
| Nosivost (kg) | 60 |
| Materijal za pakovanje (mm) | Š ≤500, spoljašnji prečnik ≤Φ280, LLDPE folija |
| Machine dimensions (mm) | 1600 × 600 × 1740 |
ORBITAL CTR
Horizontal orbital wrapping machine
ORBITAL CTR belongs to the line of horizontal orbital machines intended for efficient wrapping of a wide range of products, such as profiles, pipes, panels, various packages and goods on pallets. By using stretch film, it ensures reliable protection, stabilization and consolidation of the product during transport and storage.
The machine enables fully automatic wrapping, including automatic feeding and cutting of the film, as well as automatic transport of the product through the wrapping station. The CTR-060 is easily integrated into existing packaging lines as well as production lines, significantly reducing the need for manual labor and increasing overall productivity.
Technical specifications – ORBITAL CTR
| Power supply | 1P, AC220V, 50Hz |
| Air pressure (MPa) | 0.6–0.8 |
| Brzina okretanja (rpm) | 5–100 |
| Širina folije (mm) | 76 (3”), 102 (4”), 127 (5”) |
| Work surface height (mm) | 750 (podesivo) |
| Kapacitet pakovanja – okrugli paket (mm) | Φ102–330 |
| Kapacitet pakovanja – pravougaoni paket (mm) | Š102–550, minimalna visina 50 mm, maksimalna dijagonala 560 mm |
| Machine dimensions (mm) | 1249 × 1315 × 1593 |
| Machine weight (kg) | 315 |
ORBITAL CTR 200BD
Horizontal orbital wrapping machine
CTR-200BD is a horizontal orbital wrapping machine, intended for packaging various products, especially longer, heavier and irregular items such as pipes, profiles, panels, packages and pallets. The machine works fully automatically – the film is applied while the product is transported through the machine, which allows for a high level of automation and efficiency. A friction (friction) wheel is used to transfer the product, while the wrapping is done with a 250 mm wide stretch film, with the possibility of pre-tensioning up to 250% in order to achieve firm and stable wrapping. The CTR-200BD supports the packaging of round products with a diameter of Φ900 to Φ1750 mm, as well as rectangular packages with a width of 750-1750 mm, with a maximum diagonal of up to 1950 mm.
Technical specifications – ORBITAL CTR 200BD
| Brzina okretanja (rpm) | 5–30 |
| Način prenosa | Tarni točak |
| Širina folije (mm) | 250 (10”) |
| Procenat predzatezanja | 250% (podesivo) |
| Visina stola (mm) | 850 (podesivo) |
| Kapacitet pakovanja – okrugli paket (mm) | Φ900–1750 |
| Kapacitet pakovanja – pravougaoni paket (mm) | Š750–1750, maksimalna dijagonala 1950 mm |
| Machine dimensions (mm) | 1630 × 2725 × 2725 |
| Machine weight (kg) | 1260 |
Depending on the application needs, users can choose the best solution from SIAT's wide range of semi-automatic, automatic and self-propelled stretch film wrapping machines, optimizing the wrapping cycle with the various options available. The offer includes devices for and and „banding“, pressure units and lifting frames, which are integrated with advanced control functions for increased efficiency.
In addition, SIAT's film wrapping machines are also available for a wide variety of requirements — they are suitable for working in spaces of only 1.5 meters and efficiently handle both light pallets and those of non-standard dimensions. Thanks to SIAT's innovative solutions, it is possible to provide an efficient wrapping process adapted to the specific operational needs of each user.
ONEWRAP Semi-automatic machine for wrapping with stretch film
OneWrap is a semi-automatic machine designed for wrapping palletized loads with stretch film. It represents an ideal solution for the most common pallet packaging needs. It can be equipped with a mechanical or electromagnetic brake (EM / M / FM), as well as a film pre-stretching trolley - mechanical or motorized (SM - 90% / LP - 240%). 5 Operating modes: Automatic - lifting only / Automatic - lifting and lowering / Automatic - lifting only + pause for placing the top cover sheet / Automatic - lifting and lowering + pause for the top cover sheet / Manual mode.
New control panel a modern and streamlined control panel with clearly understandable icons is designed. OneWrap allows programming up to 10 different programs, which achieves a uniform wrapping cycle for each type of product.
ONEWRAP PLUS Semi-automatic stretch film wrapping machine with pressure plate
SIAT Onewrap Plus is a new Siat machine that will allow you to maximize the results of your wrapping process.
Thanks to the icons on the control panel, it is extremely fast to set up a complete wrapping program that optimizes foil consumption for all the different SKUs that need to be wrapped.
This is not the only "Plus" advantage of the machine: it has a very robust construction and a guaranteed maximum platform load of 2400 kg (without HSD platform). Your company would thus receive a reliable and high-quality device!
In addition, it is possible to save up to 10 customizable wrapping programs. The operator only needs to set up the Onewrap Plus once, and can then simply call up the desired wrapping program from the control panel as needed.
PROWRAP
Semi-automatic machine for wrapping with stretch film
SIAT ProWrap is a versatile and upgradable semi-automatic machine with a turntable, intended for intensive and demanding applications of stretch film. It enables optimized foil consumption and full control of all wrapping parameters during the entire cycle.
Kao mašina visokog ranga, projektovana u skladu sa konceptom Industrija 4.0, ProWrap obezbeđuje optimizaciju tranzitnog pakovanja u skladu sa potrebama konkretne industrije.
This is not the only one. „Plus“ advantage of the machine: it has a very robust construction and a guaranteed maximum platform load capacity of 2,400 kg (without HSD platform). Your company would thus receive a reliable and high-quality device!
In addition, it is possible to save up to 10 customizable wrapping programs. The operator needs to adjust Onewrap Plus only once, and then as needed he can simply call up the desired wrapping program from the control panel.
W8Wrap
Semi-automatic stretch film wrapping machine with integrated scale
W8Wrap is an innovative solution that combines pallet wrapping, measuring and labeling in one step.
Designed to improve efficiency in logistics, storage and production, W8Wrap reduces handling time, minimizes errors and ensures full traceability of each pallet.
With high precision measurement and automatic label printing with barcode tracking, W8Wrap helps companies meet transport regulations and optimize packaging processes at the same time. Its compact design and plug-and-play integration with SIAT stretch film machines make it the ideal choice for businesses looking to reduce costs and increase productivity.
ONE 2WRAP ARM
Semi-automatic machine for wrapping with stretch film
OneWrapArm, a new semi-automatic machine for wrapping pallets with stretch film, automatically attaches and cuts the film at the end of each cycle, without the need for fences or scanners.
Zahvaljujući integrisanim bezbednosnim sistemima, mašina bezbedno radi u otvorenim okruženjima, smanjujući potrebnu površinu i poboljšavajući pristupačnost.
OneWrapArm kompanije SIAT predstavlja savršeno rešenje za firme koje traže osnovnu automatizaciju, konstantne dnevne performanse i kompaktan dizajn.
Potpuno električna, kompaktna i jednostavna za upotrebu, OneWrapArm obezbeđuje stabilno i sigurno umotavanje uz minimalno učešće operatera.
BEEWRAP+
Self-propelled machine for wrapping pallets with stretch film - robot
BeeWrap+ is a mobile machine for wrapping pallets with stretch film. It is suitable for loads of great weight, unusual shapes and large dimensions. It is equipped with a digital control panel that allows the user to set various parameters and create customized wrapping cycle programs in a simple and functional way.
With elegant design improvements and new functionalities, upgraded BeeWrap+ now equipped with AGM dry battery technology. It guarantees greater autonomy of operation (up to 400 cycles per charge) and improves the safety of the machine itself.
PROWRAP F/A
Automatic machine for wrapping with stretch film
New automatic pallet wrapping solution — ideal for automated lines and high-performance packaging.
SIAT's ProWrap F/A is a fully automatic rotary platform machine designed to meet the demands of modern industrial packaging. Made in Italy and designed for efficiency, it provides constant, high operating speeds with full control over wrapping parameters.
With a pallet handling capacity of up to 2,000 kg, the ProWrap F/A offers 250% film pre-stretch as standard (upgradable to 350%) thanks to Viking PW™ trolleys. Integrated roller conveyors and flexible layout options — such as 90° pallet in/out — make it the perfect solution for automated lines.
With an intuitive 7" touch screen, real-time consumption statistics and optional equipment such as foil welding system, pressure plate and roping function,
Automatizujte svoju liniju. Povećajte performanse. Izaberite ProWrap F/A.
